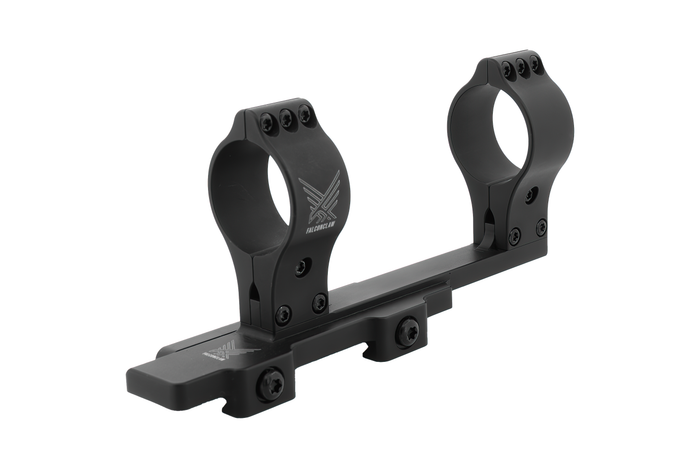

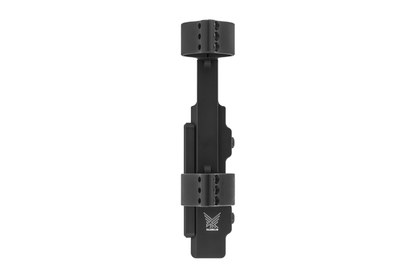

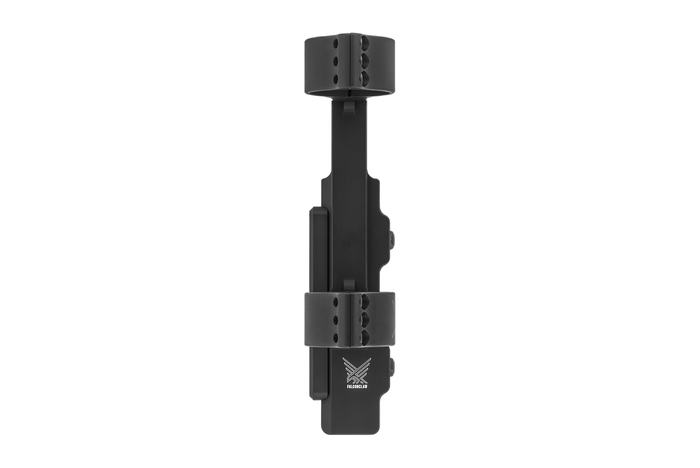

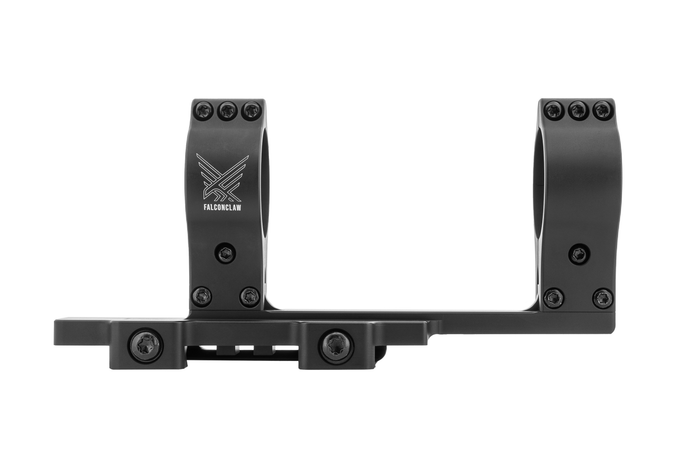

Falconclaw LPVO Mount

We’ve received many requests from LPVO users asking how they can achieve a minimum height while still being able to use the Falconclaw QDF (flip-to-side mount). Since there aren’t many LPVO rings that offer the perfect height, we decided to create one.

Specifications

• Extremely light yet strong design.
• All components are machined from 7075-T6 aluminum.
• All threads are reinforced with steel Helicoil thread inserts.
• Optical Centerline Height: 1.7″ / 43.18 mm.
• 4.76 oz / 135 grams
• 4 mrad cant.
• Aligns the PFN640+ V1 / Falcon 640+ V2 / RH25 / RH25 V2 to the perfect height.Screw tightening torques:M4 1.8-2.0 Nm
  Lower M3 1.0 Nm
  Upper M3 0.9 Nm”
