Pegasus Astro DewZap Dual Channel Dew Heater Controller (DEWZAP)
Pegasus Astro DewZap Dual Channel Dew Heater Controller (DEWZAP)
✅ Made In USA
✅ Quick Delivery
✅ Cruelty Free
Couldn't load pickup availability
-
Ordered
- - -
Order Ready
- - -
Delivered
Pegasus Astro DewZap Dual Channel Dew Heater Controller (DEWZAP)
Pegasus Astro DewZap Dual Channel Dew Heater Controller
* Power cable is optional. PEG-PSU-21 or CIGLIGHT-ADAPTER21 must be bought separately.

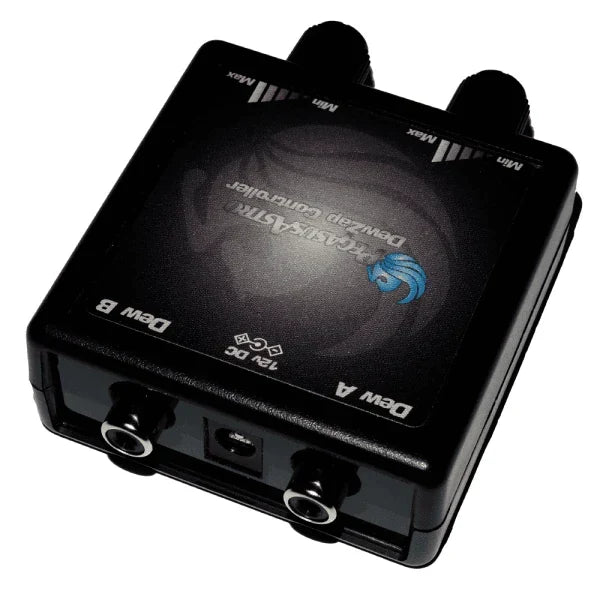

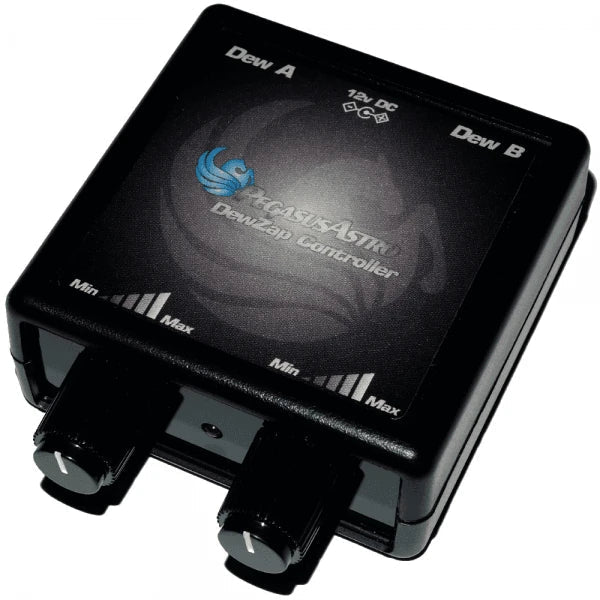

The Pegasus Astro DewZap Dual Channel Dew Heater Controller is simple to use, powerful and very compact is your best companion against the dew during long astro – nights.
Two individual digital outputs for dew strips
DewZap has two individual digital RCA outputs. You can control its output by turning each knob on the top of the controller.
Pulse Width Modulation Duty Cycle Control
Controller was built with modern digital electronics and fully supports duty cycle (PWM) control.
Zero to 100% heater control
Knobs can drive Pulse Width Modulation duty cycle from zero to 100%
Ten (10) amps current capacity (5 amps per channel)
Powerful mosfets on each output can provide easily 5Amps per channel. There are no voltage drops there.
Reverse polarity protected.
Device is protected from reverse polarity.
LED Operation indicator
A led indicator in front of the faceplate ensures controller is operational.
Technical Specification
| Supply Voltage | 12V DC Operation |
| Output | Same input voltage in Pulse Width Modulation Duty Cycle |
| Channels | Dual (2) |
| Power Outlets | 2 x RCA |
| Power Input Connector | 2.1mm Centre Positive Socket |
| Dimensions | 66 mm x 66 mm x 28 mm |
| Detachable fused power cord | A Slow fuse is at 8Amps, located on tip. Cord has 1.8m length |
In the Box
DewZap Controller Only
* No Power Cable included: We Suggest the PSU-21 or the DC Power Cable 2.1
Manual & Warranty
Pegasus 1-Year Warranty
Pegasus Astro DewZap Quick Guide
