SVBONY SV406P 20-60X80 ED Dual Focus Spotting Scope (F9355B)

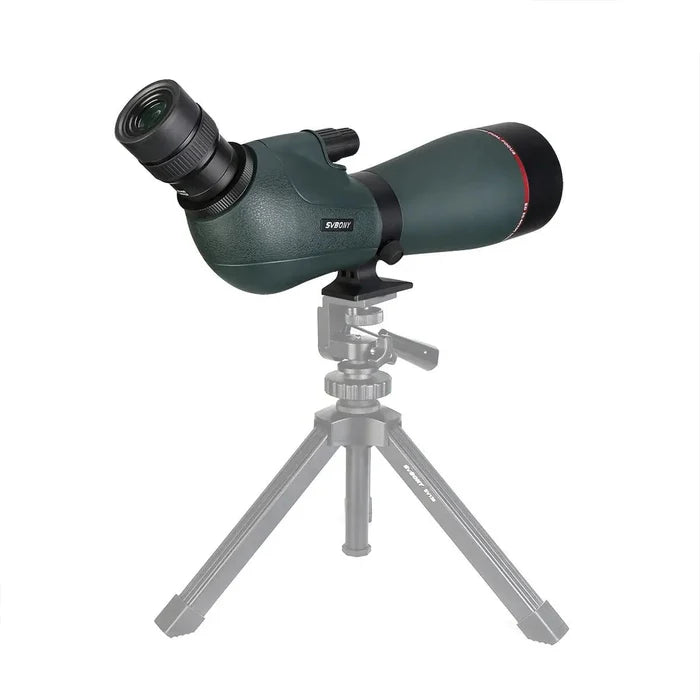

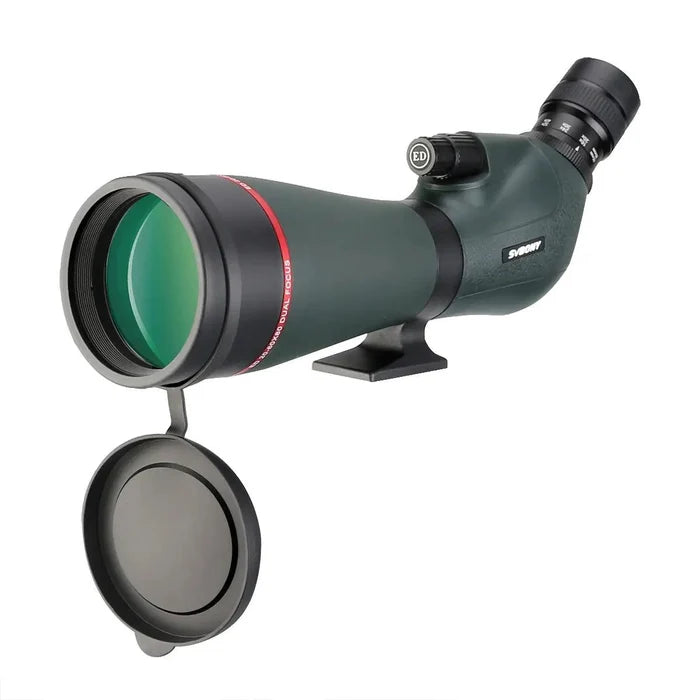

SVBONY SV406P 20-60X80 ED Dual Focus Spotting Scope
1.First Svbony ED Spotting Scope, which has Extra-Low Dispersion to maintain color authenticity.
2.Its eyepiece is removable and can be replaced with a 1.25-inch astronomical eyepiece.
3.Dual focus makes you to focus more precisely and give you the most perfect experience.
4.It is nitrogen-filled, completely waterproof and fogproof. You could enjoy hunting, bird watching interest even in wet weather.
5.BAK4 prism and FMC (Fully Multi-Coated) optics, increasing light transmission through the optical path to deliver crisp, high contrast images
6.It has a 80mm caliber to give you a clear and bright field of vision.
Technical Specifications
| Parameter | Value |
|---|---|
| Model | SV406P |
| Magnification | 20× — 60× |
| Objective (Front) Diameter | 80 mm |
| Objective Glass Material | Extra‑Low Dispersion (ED) glass |
| Focal Length | 430 mm |
| Objective Lens Construction | 3 elements / 3 groups |
| Eyepiece Diameter | 24 mm |
| Eyepiece Barrel Size | 1.25‑inch |
| Zoom Eyepiece Construction | 7 elements / 4 groups |
| Prism Type | Porro prism |
| Prism Glass | H‑K9L |
| Prism Coating | Fully Multi‑Coated (FMC) |
| Total Lens / Prism System | 10 pieces / 7 groups |
| Real Field of View | 2.1° – 1.1° |
| Apparent Field of View | 42° – 66° |
| Field of View at 1000 yds | 108 ft – 60 ft |
| Field of View at 1000 m | 36 m – 20 m |
| Resolution | 2.0″ (arcseconds) |
| Closest (Near) Focus | 18 ft / 5.5 m |
| Relative Brightness | 16 @ 20× / 1.69 @ 60× |
| Exit Pupil | 4.0 mm (at 20×) – 1.33 mm (at 60×) |
| Eye Relief | 20 mm (at low end) – 18 mm (at high end) |
| Lens Coating | Fully Multi‑Coated (FMC) |
| Focus System | Dual focus (coarse + fine) |
| Focus Type | Internal Porro prism focusing |
| Nitrogen Filled / Fog Proof | Yes |
| Waterproof Rating | IPX5 |
| Eyecup Type | Twist‑up |
| Net Weight | 1,625 g (≈ 3.58 lb / 57.32 oz) |
| Dimensions | 405 × 180 × 120 mm |
In the Box
SVBONY SV406P 20-60X80 ED Dual Focus Spotting Scope
Manuals & Warranty
Svbony 1-Year Warranty
